LHC dipoles - coil winding detail

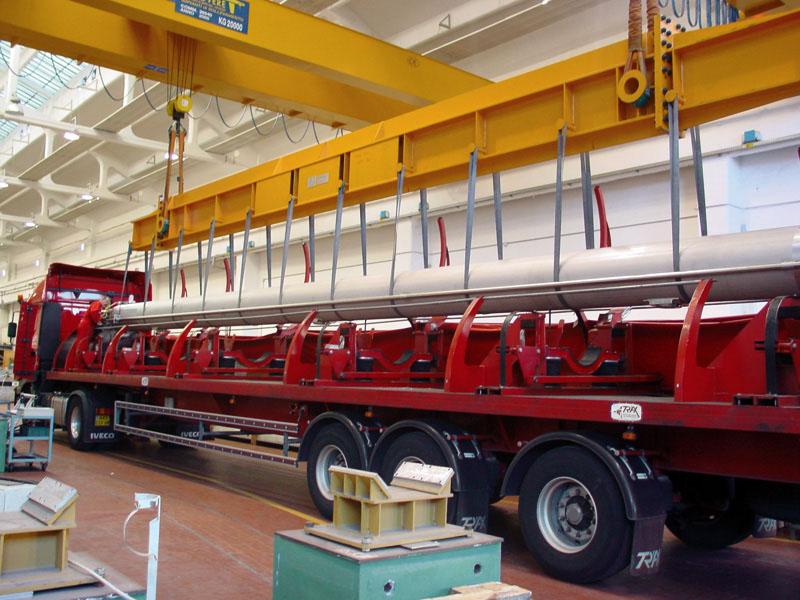

Shipping of LHC cold mass

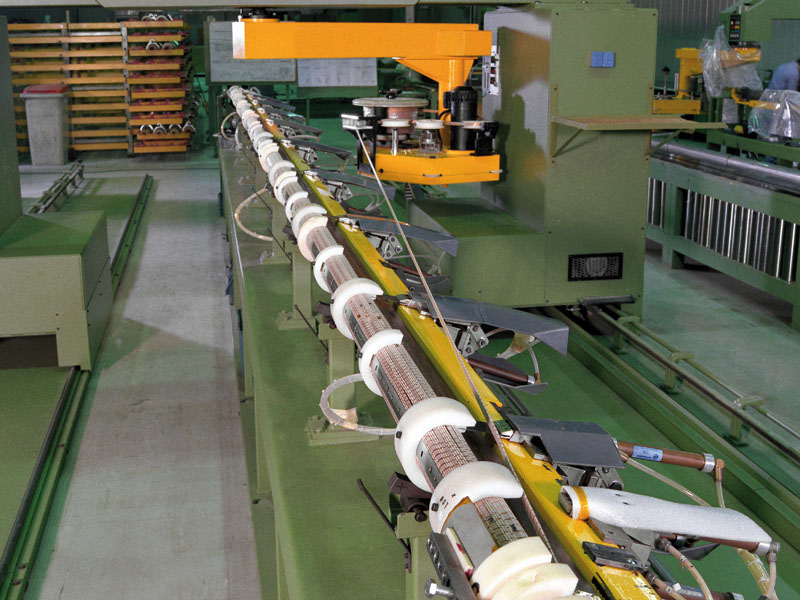

LHC cold mass series production (2006)

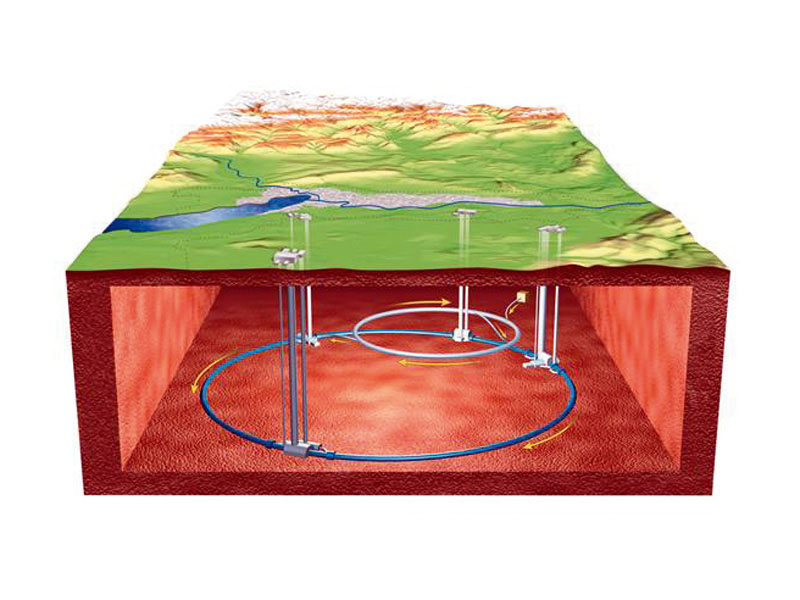

Overall view of the LHC

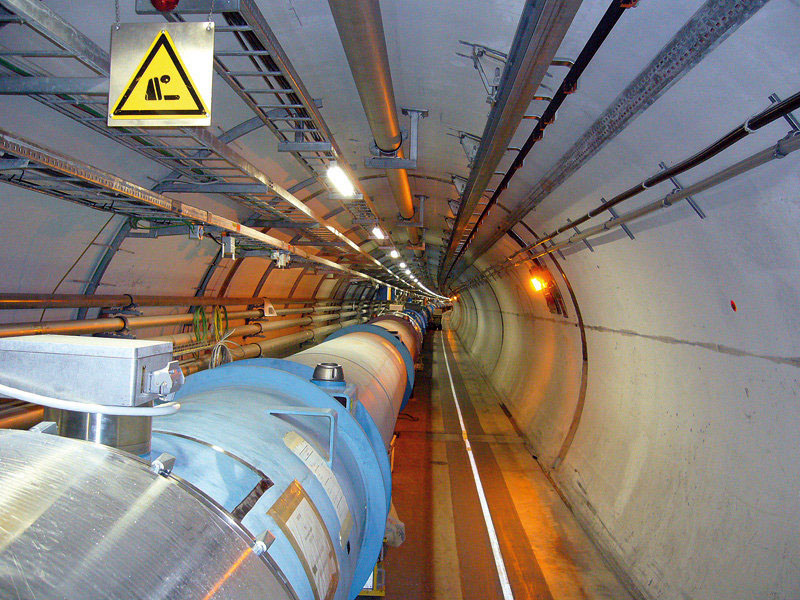

LHC tunnel
Last LHC cold mass shipping, 23/11/2006

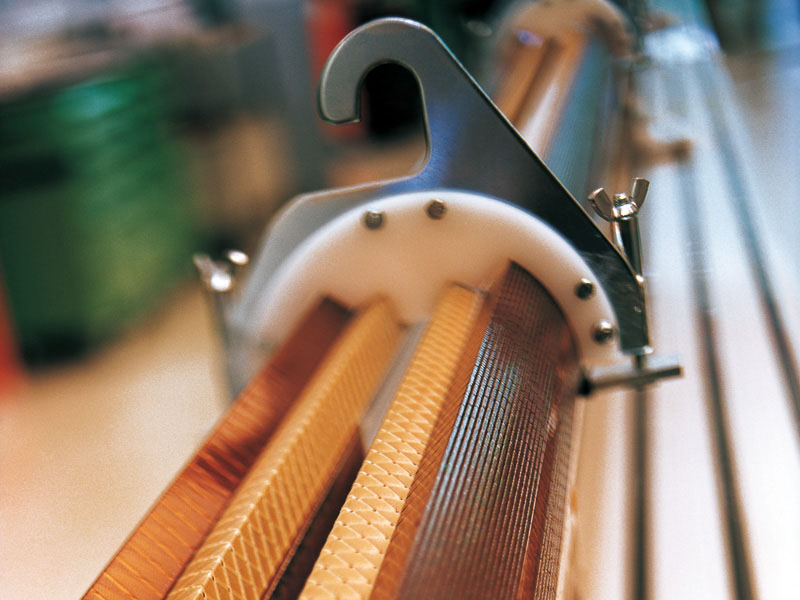

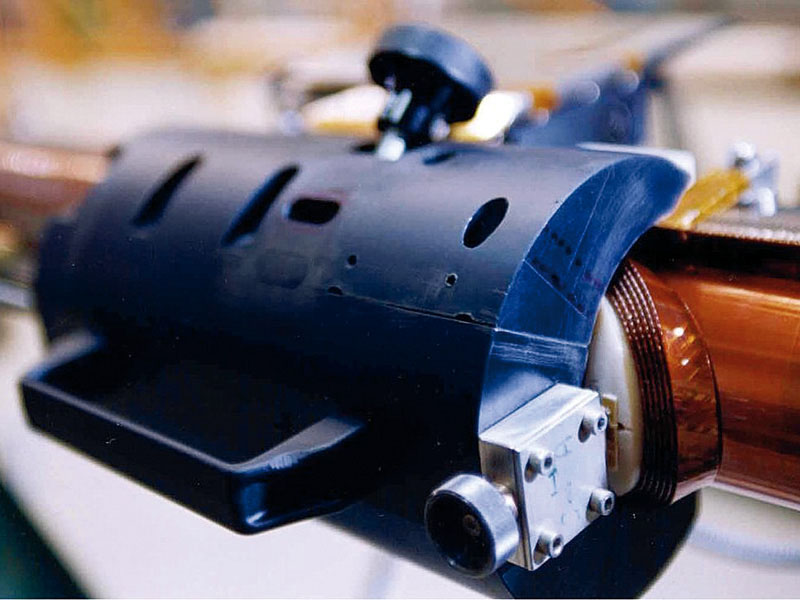

Winding detail of the end zone for the LHC superconducting coils

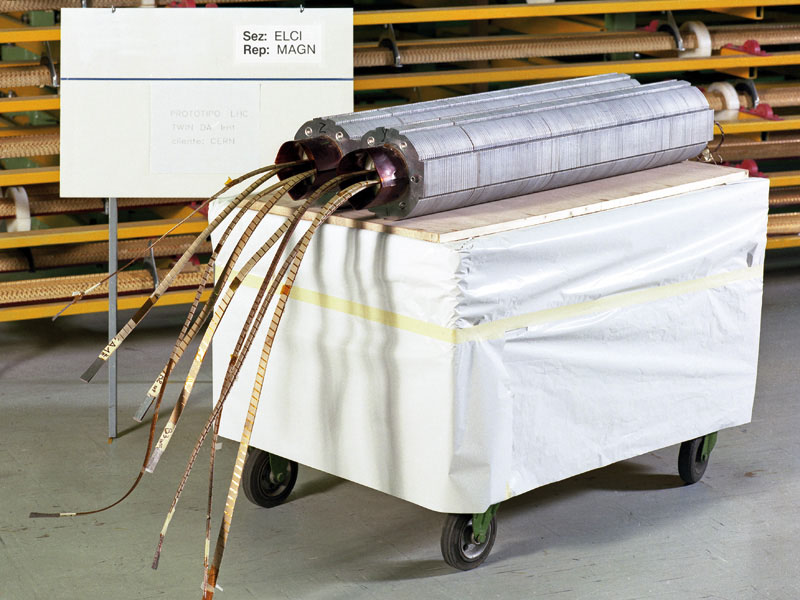

10 m LHC prototype winding in collaboration with INFN and CERN. The tests positive results of the prototypes determined the LHC project approval by CERN Council (1990-1994)

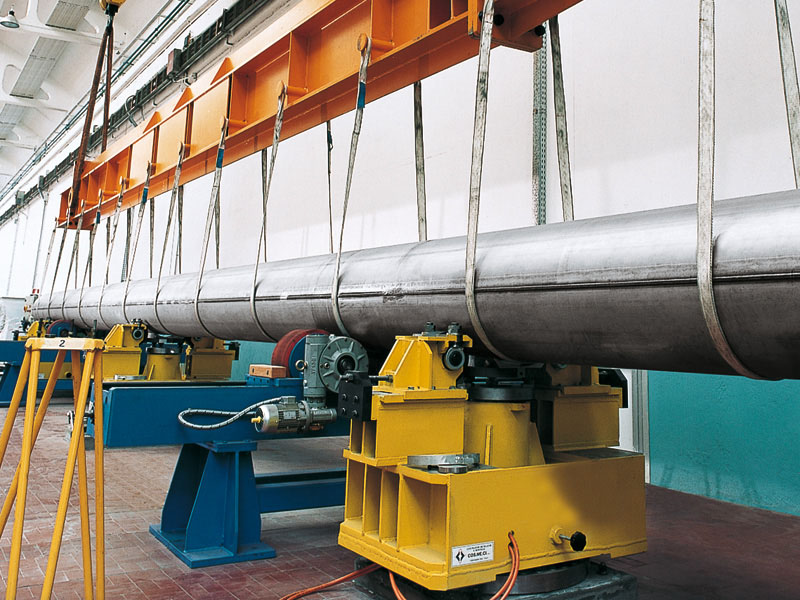

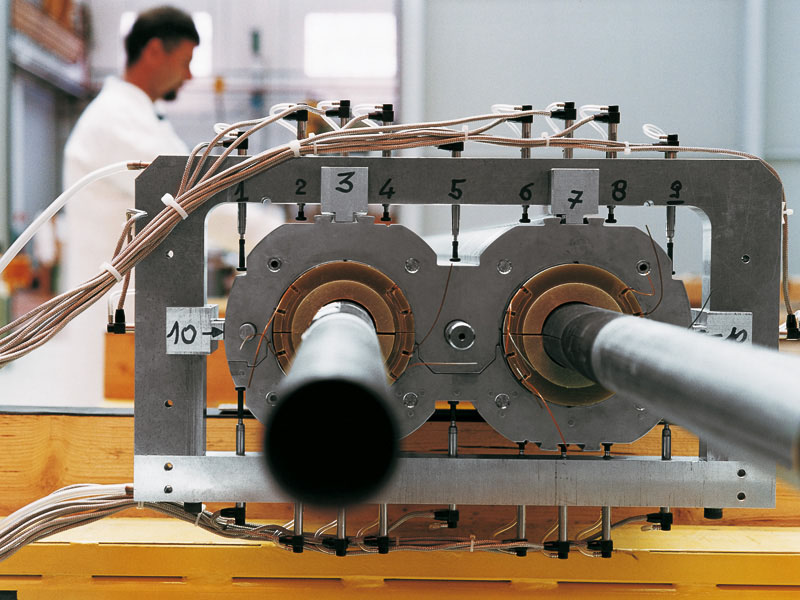

LHC Dipoles - System for positioning a cold mass and measuring it by laser tracking
Last LHC cold mass shipping, 23/11/2006

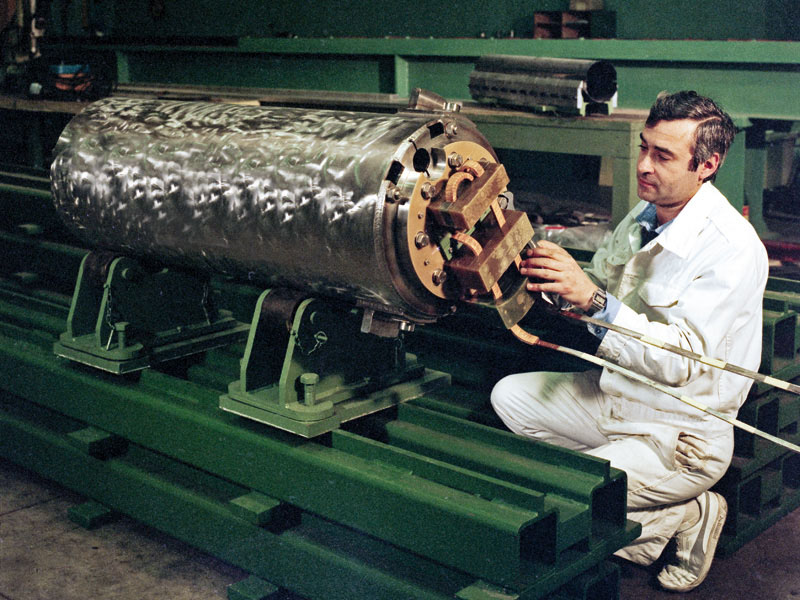

LHC - Manufacturing of 1 m twin model for the feasibility study of the twin aperture concept (CERN collaboration) (1989)
Multi-point dimensional measuring and acquisition system used for the control of collared dipoles for the LHC project

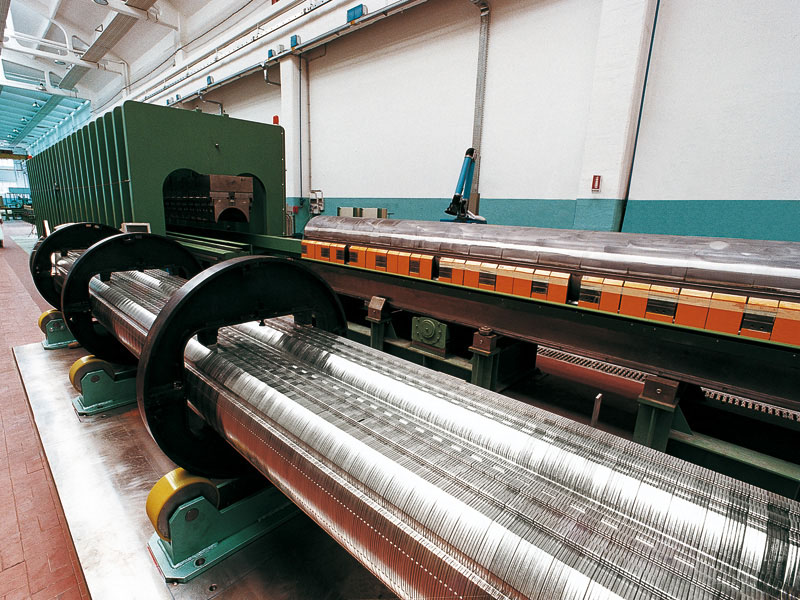

Collars assembly. First prototype 15m LHC cold mass, under INFN contract (1997)

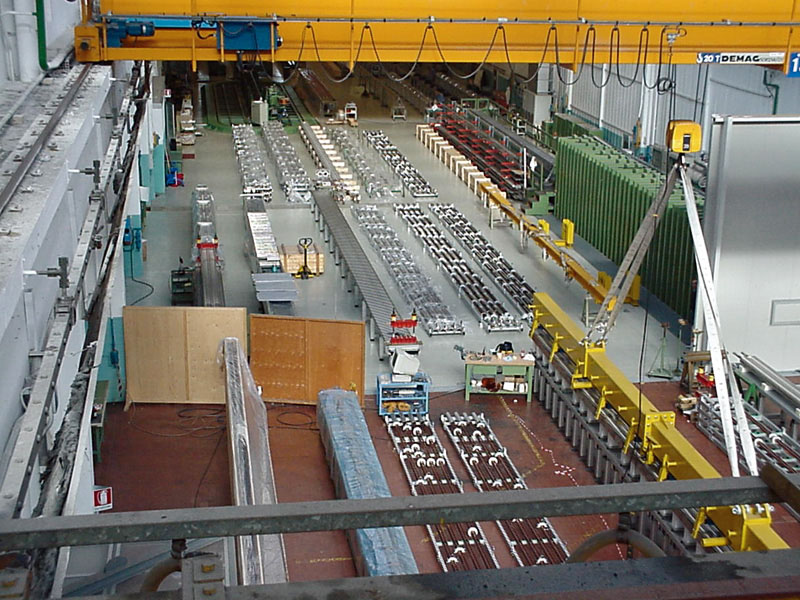

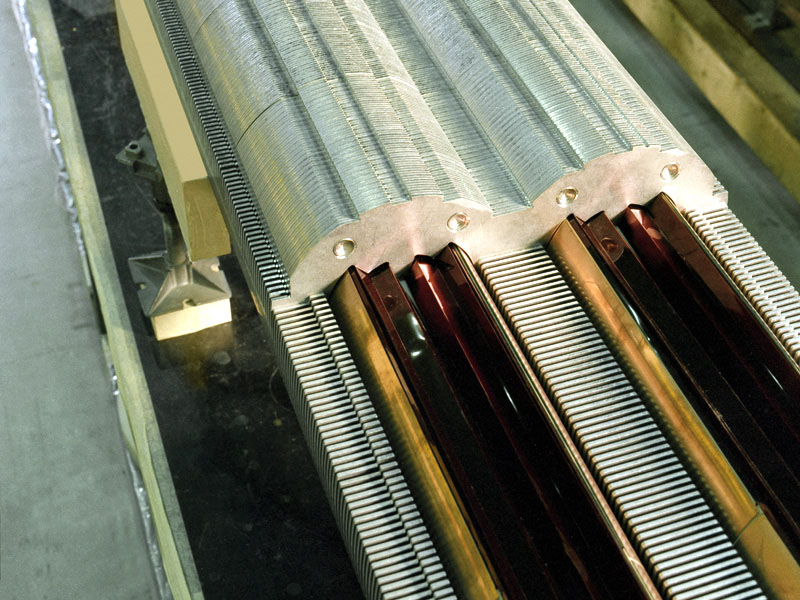

LHC Dipoles - Collared coils ready for assembly to obtain a cold mass to be welded
LHC Dipoles - Collared coils manufacturing
LHC - 1 m prototype, 9,3 at first time (world record), in collaboration with CERN, self-financed project (1988)

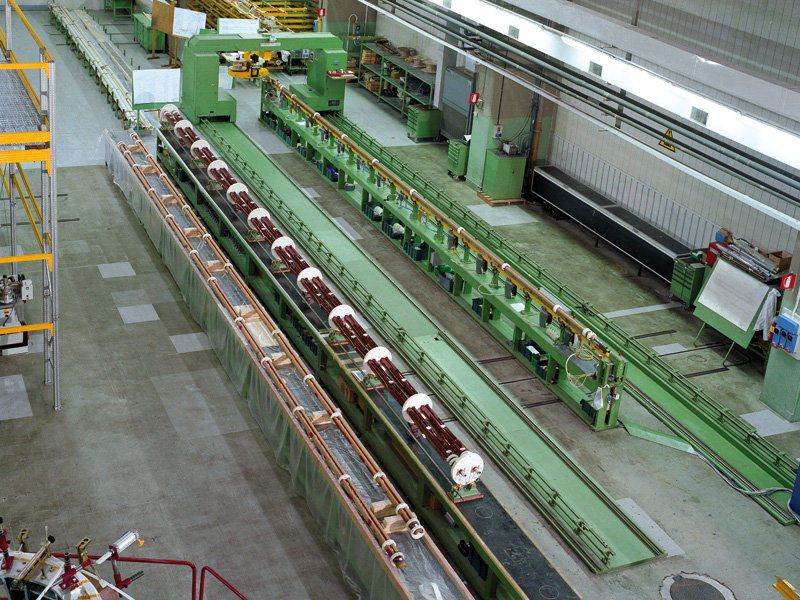

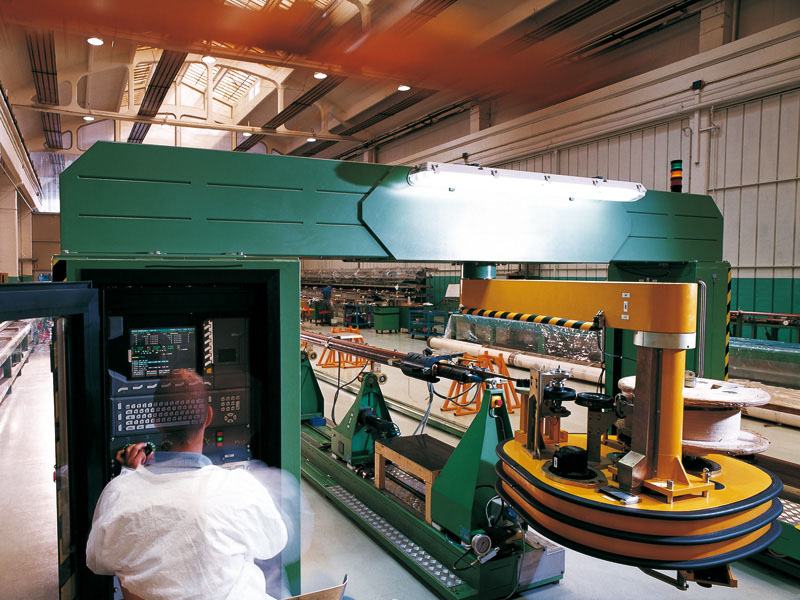

N.C. winding machine for the superconducting coils of the LHC dipoles
- CERN
Magnets for high energy physics
LHC DIPOLES
LHC dipoles
Geneva (Switzerland), 2007
The Large Hadron Collider (LHC) is a particle accelerator located at CERN in Geneva, inside a tunnel 27 km long, spanning the border between Switzerland and France, which was formerly used to house the Large Electron - Positron Collider (LEP). The LHC is the largest and most powerful existing particle accelerator, aimed at investigating the matter properties on an increasingly fine scale. The magnets inside the accelerators are necessary to keep the particles on a circular orbit and the particle beam focused. The dipole magnets require high precision mechanical tolerances which needed years of research and development and the construction of a number of prototypes.
