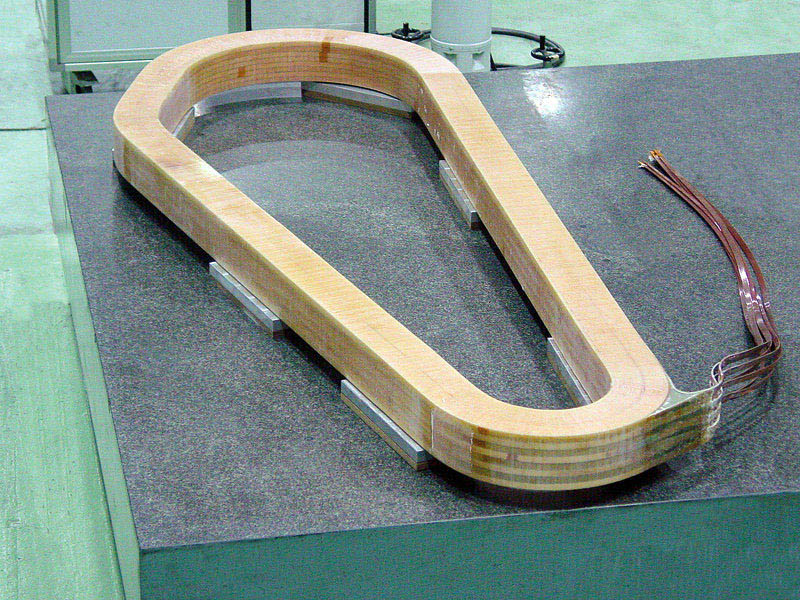

R3B GLAD - Prototype after impregnation

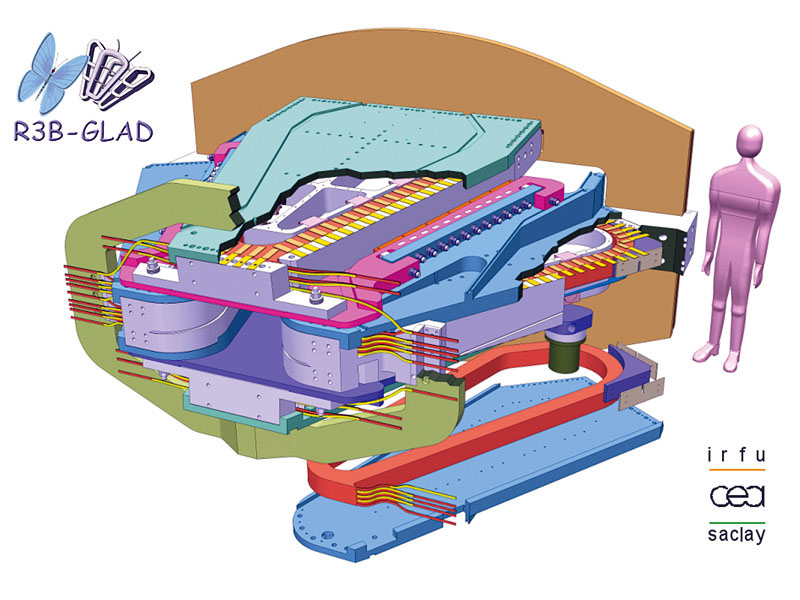

CEA overall preliminary view of R3B magnetic system

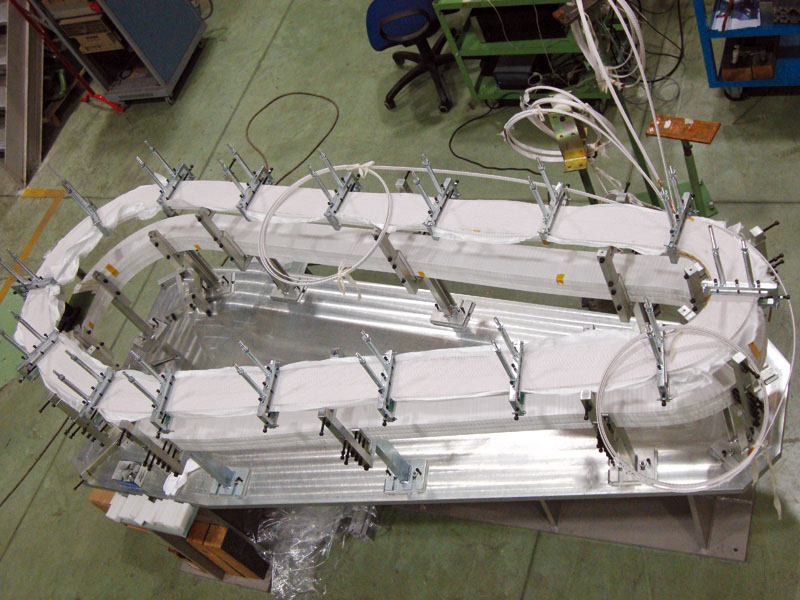

R3B GLAD - Prototype coils assembly

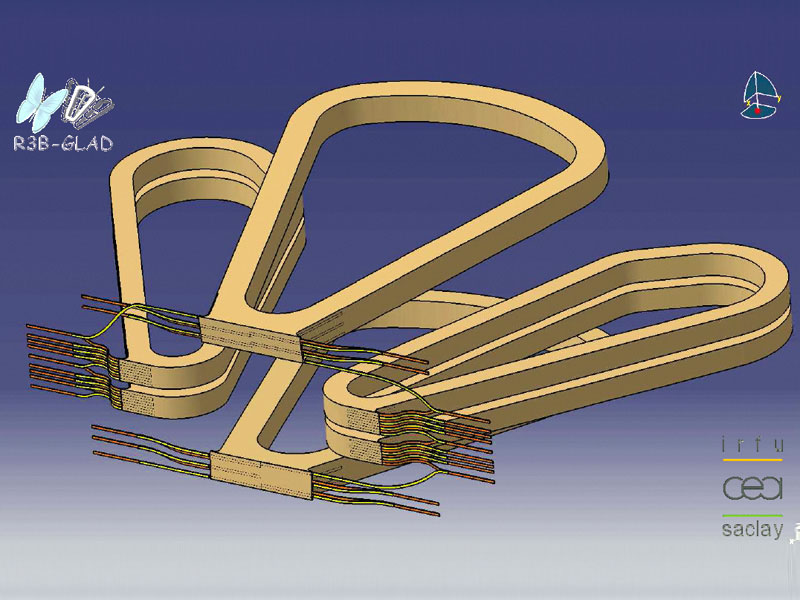

R3B GLAD - Coils configuration
- CEA
Magnets for high energy physics
R3B GLAD
R3B GLAD superconducting magnet
Saclay (France), 2000
This magnetic system for the R3B experiment to be built in the FAIR Facility at GSI, provides the field required for the large acceptance spectrometer dedicated to the analysis of Reactions with Relativistic Radioactive ions Beams. ASG Superconductors delivered in 2010 the R3B GLAD magnetic system, consisting in six superconducting coils assembled into four aluminum casings.
